Special Liquid Level Transmitter for Gasoline Pressure Transmitter Testing Sensor

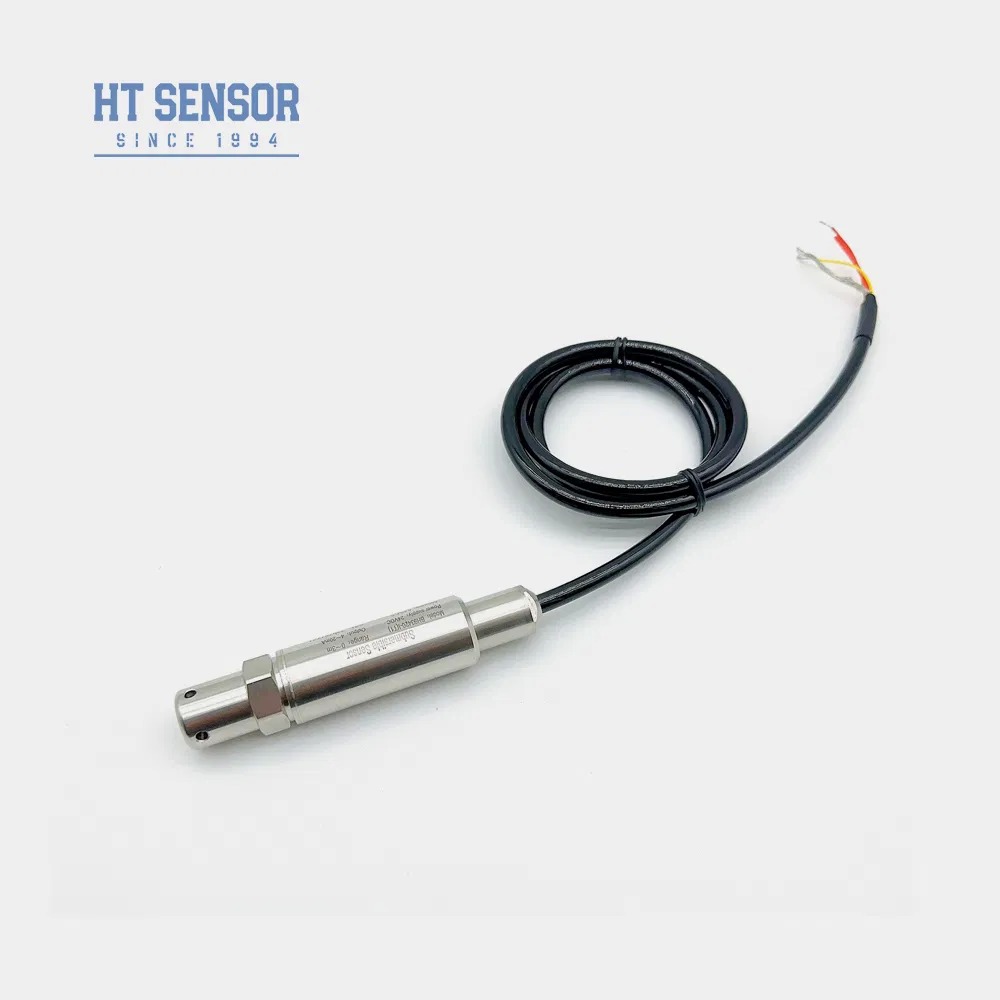

BH93420-IT Liquid Level Transmitter
The BH93420-IT liquid level transmitter utilizes the HT series high-precision piezoresistive diffused silicon pressure sensor. It features a fully welded stainless steel housing with a hexagonal and water guide head design, employing waterproof sealing technology to meet various installation requirements and adapt to different application scenarios.
Product Features
- Fully welded design ensures safety and reliability

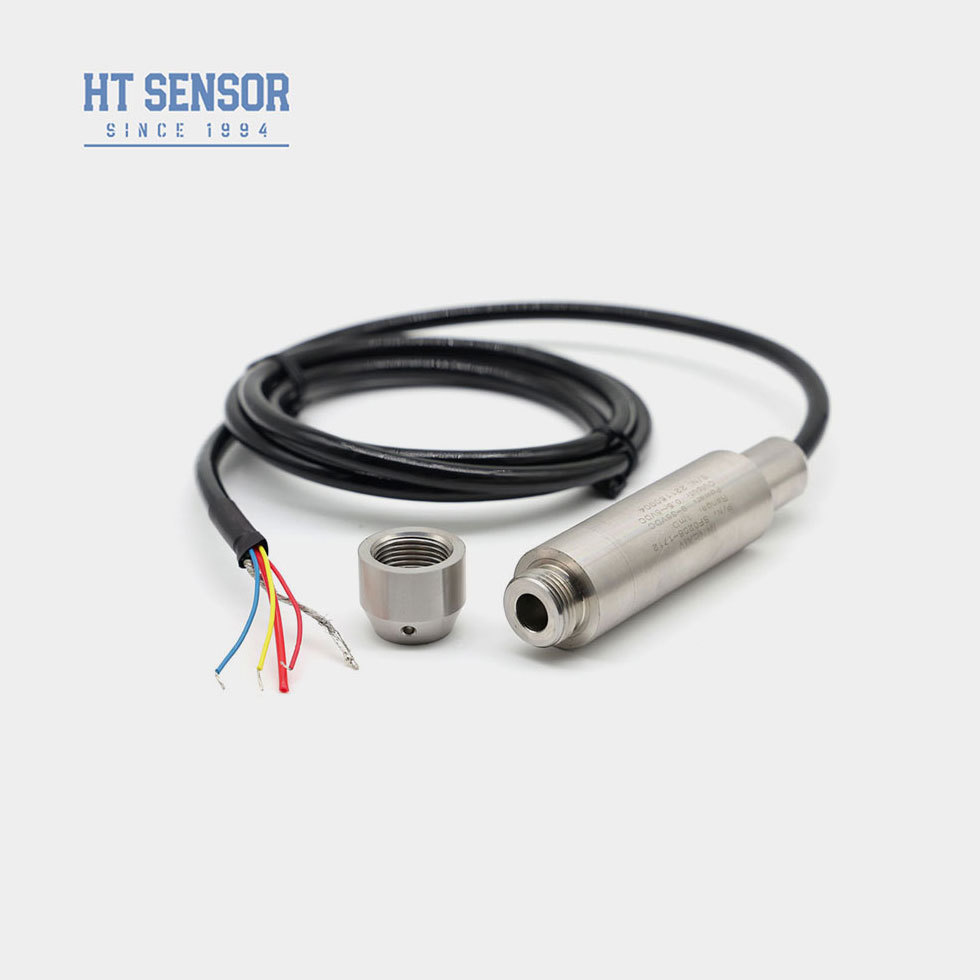

- Dual options for probe insertion and threaded installation to meet various on-site installation needs
- Rigorously tested for high and low temperatures, suitable for wide temperature range applications
- Explosion-proof marking: ExiaIICT6

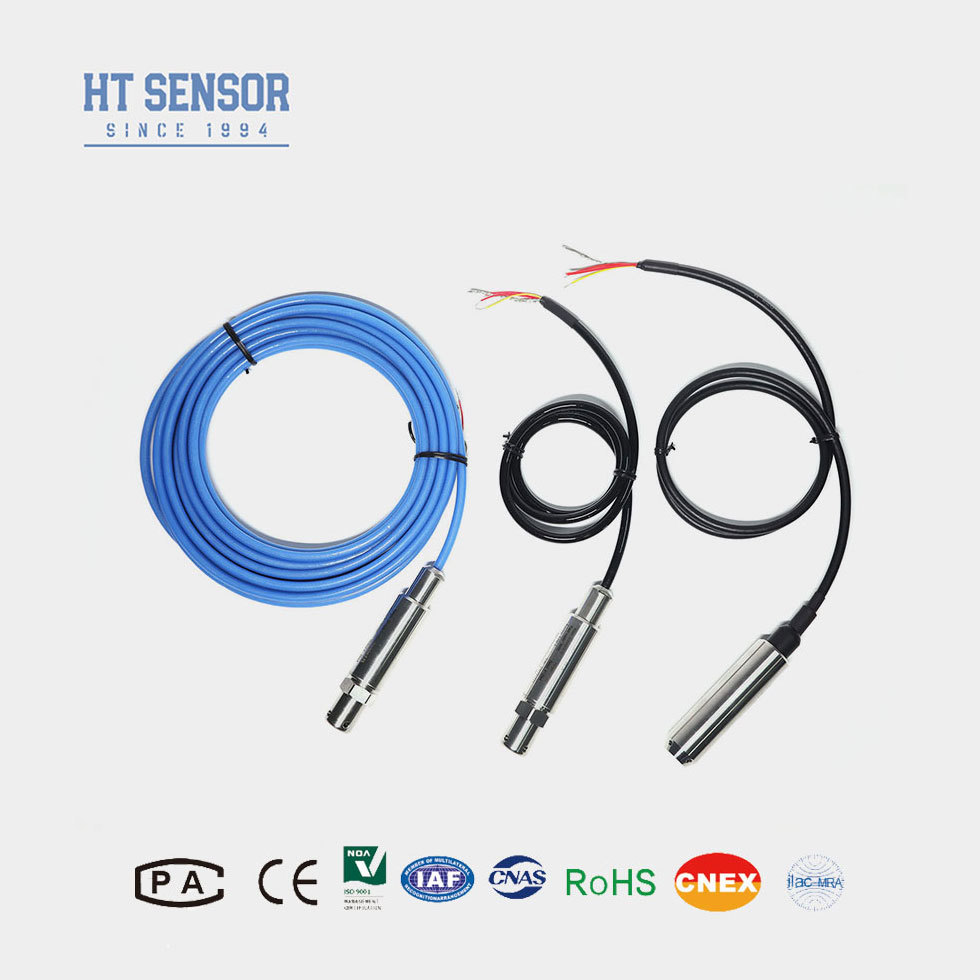

- PTFT and PU cable options
- Various output signal options available
Applications
- Compatible with 316LSS and non-corrosive liquids
- Monitoring water levels in sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
- Measuring fuel levels in diesel and fuel tanks
Performance Parameters
| Parameter | Specification |
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti, 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
Output Signal Options
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | | 3 wire |
| 0/1~5V | 5VDC | |
| 0/1~10V | |
| 0.5~4.5V | |
Ordering Tips
- Ensure the measured medium is compatible with product components
- Specify the density of the measured medium
- For strong electromagnetic or radio frequency interference environments, provide details
- Install lightning protection devices and ensure proper grounding for reliable operation
Order Guide
| Code | Option |
| BH93420 | Pressure Transmitter |
| IT | Measurement Range: 0~10m...400m |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| D3 | Other Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| S3 | 0~5VDC Output |
| S4 | 0~10mADC Output |
| S5 | 0~20mADC Output |
| S6 | 0~10VDC Output |
| S7 | 0.5~4.5VDC Output |
| S8 | RS485 Output |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| C1 | PU Cable |
| C2 | PTFE Cable |
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: 24-month warranty after shipment. After-sales responds within 24 hours, with remote PC network support available.
