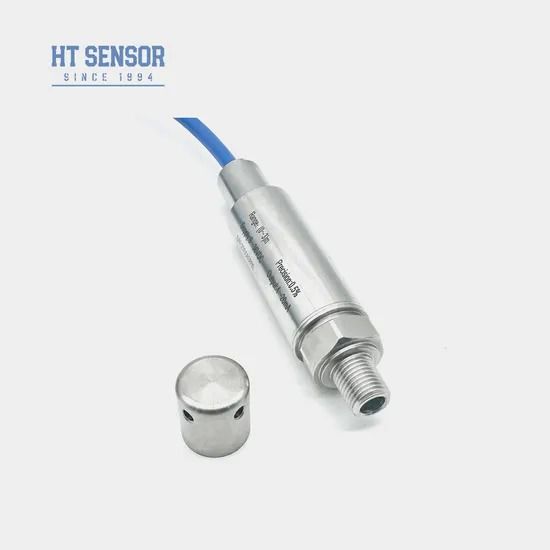

HT Series BH93420-IT Hex Liquid Level Transmitter 0.25% Accuracy IP68
Product Details
| Μοντέλο αριθ.: | BH93420-IT | Κλίμακα πίεσης: | Πίεση μετρητή, απόλυτη πίεση |
|---|---|---|---|
| Βαθμός ακρίβειας: | 00,25%,00,5% | Βαθμολογία IP: | IP68 |
| Καθαρό βάρος: | 0,3 κιλά | Υλικό διάφραγμα: | 316L από ανοξείδωτο χάλυβα |
| Σταθερότητα: | ± 0,1% F.S/Year (Τύπος) | Επενδύσεις Temp.: | -10 ~ 70ºC |
| Εύρος μέτρησης: | 0 ~ 10m… 400m | Παραφορτώνω: | ≤ 2x βαθμολογία |
| Επαναληψιμότητα: | ± 0,03% (τύπος) ± 0,05% FS (μέγιστο) | Θερμοκρασία λειτουργίας: | -20 έως 80 oC |
| Θερμοκρασία αποθήκευσης: | -30 ~ 100ºC | Υλικό στέγασης: | 1CR18NI9TI, 316L ανοξείδωτος χάλυβα |
| Κατηγορία ανθεκτικότητας σε έκρηξη: | Εξαιρετική | ||
| Επισημαίνω |
HT Series liquid level transmitter,Hex liquid level transmitter IP68,Water level transmitter 0.25% accuracy |
||
Product Description
The BH93420-IT liquid level transmitter utilizes the HT series high-precision piezoresistive diffused silicon pressure sensor. Featuring a fully welded stainless steel housing with hexagonal and water guide head design, this transmitter employs waterproof sealing technology to meet various installation requirements and adapt to diverse application scenarios.
- Fully welded design ensures safety and reliability
- Dual installation options: probe insertion or threaded installation
- Rigorously tested for high and low temperature performance
- Explosion-proof rating: ExiaIICT6
- Available with PTFE or PU cables
- Multiple output signal options
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water systems, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25°C | ±0.25% (Typ.) ±0.5% (Max.) |
| Operating Temperature | -20~80°C |
| Housing Material | 1Cr18Ni9Ti, 316L Stainless Steel |
| Protection Rating | IP67, IP68 |
| Output Signal Options | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485 |
| Selection | Options |
|---|---|
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S2: 1~5VDC | S3: 0~5VDC | S4: 0~10mADC | S5: 0~20mADC | S6: 0~10VDC | S7: 0.5~4.5VDC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PU | C2: PTFE |
A: High precision, durability, and excellent performance. Customization available.
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.
A: 5-8 working days for standard models. Customized products may vary.
